HOW THE BULB-TITE WORKS:

During installation the rivet body folds into three separate legs, forming the blind-side upset head. The Bulb-tite mandrel breaks off *flush with the rivet head. *Flush mandrel break requires use of special Bulb-tite installation tool nose tip.

WEATHER TIGHT:

A special nose tip on the rivet installation tool crimps a crown feature on the rivet head. This crown-crimp effectively seals the rivet bore off from intrusion of dirt and moisture. Adding the optional washer to the Bulb-tite, creates an additional seal around the perimeter of the rivet head, to stop moisture from intruding beneath the rivet head.

HIGH STRENGTH:

Another benefit of the Bulb-tite rivetís retained mandrel core is the added strength it provides. Bulb-tite rivets are less prone to failure in high shear loads.

HIGH CLAMPING:

The large three-legged upset head evenly distributes the Bulb-tite rivetís high clamp load over a broader bearing surface than do conventional blind rivets. This enables soft, thin, ductile and even brittle materials to be securely clamped without deformation, cracking or other damage to the application.

HARD-TO-FASTEN APPLICATIONS:

Bulb-tite rivets function well in materials where other fasteners fail. The folded legs individually conform to curved surfaces enabling fastening onto pipes, corrugations and other challenging shaped applications. Oversized or elongated holes can be adequately covered by the large leg formations to resist pull through under stress in high tension-load applications.

MULTI-GRIP

CAPABILITY: Each Bulb-tite handles a wide variation in material thickness. Most sizes fasten over a 1/4" thickness range. Fewer rivet sizes may be required resulting in reduced inventory requirements and simplified fastener selection.

CHOICE OF FINISHED APPEARANCE:

Bulb-tite rivets are offered in a variety of head styles. Standard Dome, Low Profile, Large Flange and Countersunk head styles are available. Color matched plastic finish caps can be snapped onto certain Bulb-tite head styles to conceal installed rivet heads. The unique Shaveable Head Bulb-tite was specifically designed for use in heavy truck and trailer applications where solid rivets are used. They are ideal for repair of solid riveted assemblies where access to the applicationís blind side may be no longer accessible. The Shaveable Bulb-tite rivet head is finished using a special head-shaving tool. Shaved Bulb-tite rivet heads then match the appearance of solid rivets in the assembly.

MATERIAL CHOICES:

The standard Bulb-tite rivets are made of aluminum alloy, providing a durable non-rusting fastener that can withstand weather-related corrosion. Some Bulb-tite sizes are also available in steel and monel materials where higher strength is required.

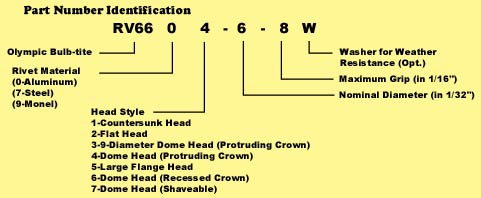

Part Numbers

A - Head Diameter
B - Head Height
D - Body Diameter
F - Blind Side Protrusion
L - Rivet Body Length

Head Style	Rivet Dia. Nom.	GESIPA Part Number	Grip Range	Hole Size Drill No.	Dimensions (Inches)					Typ. Strengths (lbs.)
					D max	B max	A	L max	F ref	Shear	Tensile
	3/16"		.106-.250	.209-.221 #4	.205	.108 w/crown	.340 min	.770	.935	675	450
			.187-.375					.895	1.060
			.312-.500					1.020	1.185
			.437-.625					1.145	1.310
			.563-.750					1.270	1.435
	1/4"		.150-.250	.250-.263 E	.246	.164	.452 min	.815	1.005	1100	675
			.187-.375					.940	1.130
			.250-.500					1.065	1.255
	5/32"		.125-.250	.162-.167 #20	.161	.057	.355-.375	.790	.862	350	225
			.187-.375					.852	.987
			.250-.500					.977	1.112
	3/16"		.125-.250	.209-.221 #4	.205	.062	.430-.455	.770	.935	675	450
			.187-.375					.895	1.060
			.250-.500					1.020	1.185
			.375-.625					1.145	1.310
			.500-.750					1.270	1.435
	5/32"		.067-.250	.162-.167 #20	.161	.069	.343	.770	.925	350	225
			.250-.500					.957	1.112
	3/16"		.050-.187	.209-.221 #4	.205	.088	.443	.687	.872	675	450
			.062-.250					.750	.935
			.187-.375					.875	1.060
			.312-.500					1.000	1.185
			.437-.625					1.125	1.310
			.563-.750					1.250	1.435
	1/4"		.062-.250	.250-.263 1/4	.246	.113	.560	.795	1.005	1100	675
			.125-.375					.920	1.130
			.250-.500					1.045	1.235
			.375-.625					1.170	1.360
	9/32"		.032-.187	.308-.327 5/16	.304	.145	.615	.843	1.000	1500	1100
			.032-.375					1.090	1.325
			.250-.625					1.340	1.575
			.375-.750					1.465	1.700
	9/32"		.042-.375	.308-.327 5/16	.304	.145	.743	1.090	1.325	1500	1100
			.250-.625					1.340	1.575
			.375-.750					1.465	1.700
	3/16"		.050-.187	.209-.221 #4	.205	.094	.469	.687	.872	675	450
			.062-.250					.750	.935
			.187-.375					.875	1.060
			.312-.500					1.000	1.185
			.437-.625					1.125	1.310
			.563-.750					1.250	1.435
	1/4"		.040-.250	.250-.263 1/4	.246	.111	.543	.795	1.005	1100	675
			.125-.375					.920	1.130
			.250-.500					1.045	1.255
			.375-.625					1.170	1.380

STEEL RIVET/STEEL MANDREL
Head Style	Rivet Dia. Nom.	GESIPA Part Number	Grip Range	Hole Size Drill No.	Dimensions (Inches)					Typ. Strengths (lbs.)
					D	B	A	L	F	Shear	Tensile
	1/4"		.150-.250	.250-.263 1/4	.246	.147	.494	.895	1.005	1250	950
			.187-.375					1.020	1.130
			.250-.500					1.145	1.355
	1/4"		.040-.250	.250-.263 1/4	.246	.111	.542	.795	1.005	1250	950
			.125-.375					.920	1.130
			.250-.500					1.045	1.255
			.375-.625					1.170	1.380

MONEL RIVET/STAINLESS STEEL MANDREL
Head Style	Rivet Dia. Nom.	GESIPA Part Number	Grip Range	Hole Size Drill No.	Dimensions (Inches)					Typ. Strengths (lbs.)
					D	B	A	L	F	Shear	Tensile
	1/4"		.040-.250	.250-.263 1/4	.246	.111	.542	.795	1.005	2100	1455
			.125-.375					.920	1.130
			.250-.500					1.045	1.255
			.375-.625					1.170	1.380

ALUMINUM RIVET/ALUMINUM MANDREL
Head Style	Rivet Dia. Nom.	GESIPA Part Number	Grip Range	Hole Size Drill No.	Dimensions (Inches)					Typ. Strengths (lbs.)
					D	B	A	L	F	Shear	Tensile
	5/32"		.020-.312	.162-.167 #20	.161	.072	.312	.800	.920	350	225
	3/16"		.050-.375	.209-.221 #4	.205	.094	.469	.875	1.060	675	450
			.050-.500		.205	.094	.469	1.000	1.185	675	450
	1/4"		.050-.500	.250-.263 1/4	.246	.120	.469	1.045	1.235	1100	675

Countersunk Head (82ƒ)	Low Profile Flat Head
Dome Head	Shaveable Brazier Head
